Retention & Filtration AID Papermaking Low Viscosity High Concentration

Basic Information
Place of Origin: CHINA
Model Number: LSR-20
Minimum Order Quantity: 1 Metric Ton/Metric Tons
Price: Negotiable
Packaging Details: 1200kg/IBC or 250kg/drum, or 23mt/flexibag
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000Metric Ton/Metric Tons per month
Detail Information
Appearance: White Emulsion Solid Content: 40
Cationic Charge: 20%-30% Viscosity: ≤600
PH Value: 4-7 Time To Dissolve(min): 10-30
Product Name: Retention & Filtration AID Kind: LSR-20
High Light:

retention and drainage aid in papermaking


retention aid

Product Description

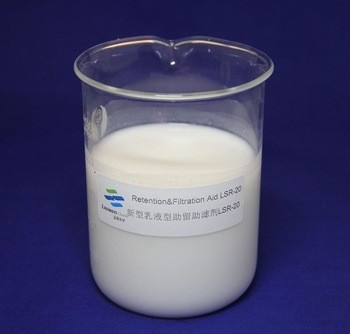

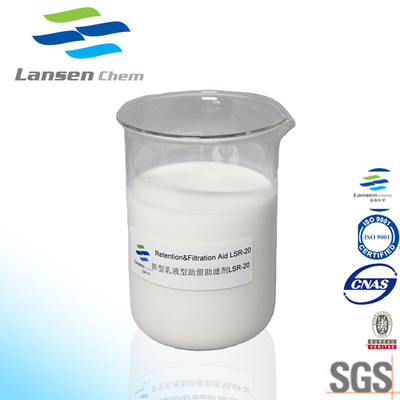

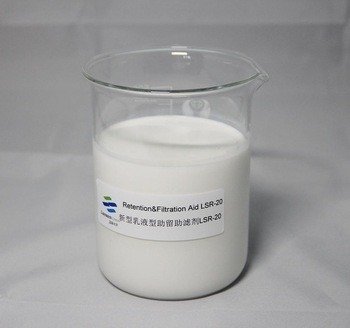

Retention Filtration Aid for Papermaking Factories with low viscosity and high concentration 40%



LSR-20 is a low viscosity, high concentration, water dispersing polyacrylamide emulsion. It is widely used in a variety of paper such as corrugated paper, cardboard paper, whiteboard paper, culture paper, newsprint, film coated base paper, etc.


1. High retention rate, reach 90%

2. Highsolid content, more than 40%

3. Good fludity, dissolving fast, dosing easily, automatic addition

4. Low dosage, 300 grams ~ 1000 grams per MT paper

5. Applicable to wide PH range, used in various kinds of papers

6. non toxic, no organic solvent, no secondary pollution


1. Significantly improve retention rate of the small fiber and filler of paper pulp, save pulp more than 50-80kg per MT paper.

2. Make the white water closed circulation system to operate well and give maximum power, make the white water easy for clarification and reduce the concentration of loss of white water by 60-80%, reduce the salt content and BOD in the wastewater, reduce the pollution treatment cost.
3. Improve the cleanness of blanket, makes the machine operate better.
4. Make the beating degrees lower, speed up the drainage of wire, improve the speed of paper machine and reduce the steam consumption.
5. Effectively improve the paper sizing degree, especially for culture paper, it can improve the sizing degree about 30 ℅, it can help to reduce the rosin size and usage of alminum sulfate around 30 ℅.
6. Improve the wet sheet paper strength, improve papermaking conditions.

Usage Method:

1. Automatic dosing: LSR-20 emulsion→pump→ automatic flow meter→automatic dilution tank→screw pump→ flow meter→ wire.

2. Manual dose: add enough water to dilution tank→ agitate→add lsr-20,

mix 10 - 20 minutes→ transfer into the storage tank→headbox

3. Note: the dilution concentration is generally 200 - 600 times (0.3%-0.5%), add place should choose high box or the pipe before wire box, the dosage is generally 300 - 1000 grams / ton (based on dry pulp)


1200kg/IBC or 250kg/drum, or 23mt /flexibag,

Storage Temperature :5-35℃.Shelf life: 6 month.




Item Index
Appearance White Emulsion
Solid Content (%,min) 40
Cationic charge (%) 20-30
Viscosity(mpa.s) ≤600
PH value 4-7
Time to dissolve (min) 10-30









Retention & Filtration AID Papermaking Low Viscosity High Concentration 0Retention & Filtration AID Papermaking Low Viscosity High Concentration 1Retention & Filtration AID Papermaking Low Viscosity High Concentration 2
